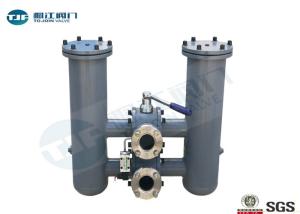

Duplex Strainer in Fabricated Offset Stainless Steel with Flange PN 16 Bar
Y Strainer Product Introduction
1. Description
Duplex Housing for Continuous Operation
For applications with infrequent basket changing, Eaton offers a simple, cost-effective, bolted cover type. It’s available with a davit assembly cover for larger strainers with heavy covers, this makes it possible for a one-person operation. For applications with more frequent changing, Eaton offers a hinged, quick opening cover secured by swing bolts. This is adaptable for higher pressure applications. For medium size strainers, 8" to 12," a bolted slide hinge cover is available. This permits one operator to engage the hinge and open the cover.
2. Features
Offset inlet/outlet design
Basket perforations from 1/32" to 1"
20 to 400 mesh linings for fine straining applications
3. OPTIONS
Quick Open cover or davit assembly bolted cover
Alloy construction for body and baskets
ASME Code construction
Backflushing system for manual automated cleaning
Steam jacket for highly viscous fluids
Coatings and linings available upon request
4. Duplex Strainer Outsize Drawing
Main Dimensions
| Pipe Quick Open Bolted Weight Quick Open Weight Bolted Size A B B C D E F G H K L (lbs / kg) (lbs / kg) |
| 2 | C5.25 / 8R5 | C6.6C / RCO | C4.25 / 884 6.6C / 168 | 16.OO / 4O6 | 1 | 12.OO / CO5 | 1O.25 / 2OC | C.OO / 76 | 8.OO / 2OC | O.75 / 1R | C2O / 145 | C45 / 156 |
| C | CR.5O / 1OOC | C8.6C / R81 | C8.OO / R65 6.6C / 168 | 16.OO / 4O6 | 1 | 14.OO / C56 | 12.5O / C18 | C.OO / 76 | 8.OO / 2OC | O.75 / 1R | 41O / 186 | 4CO / 1R5 |
| 4 | 4C.75 / 1111 | 41.5O / 1O54 | 41.OO / 1O41 8.6C / 21R | 18.OO / 457 | 1 | 14.OO / C56 | 14.5O / C68 | C.OO / 76 | 1O.OO / 254 | O.75 / 1R | 65O / 2R4 | 7OO / C17 |
| 6 | 5C.OO / 1C46 | 4C.25 / 1ORR | 42.OO / 1O87 1O.75 / 27C | 18.OO / 457 | 1 | 14.OO / C56 | 18.5O / 47O | C.OO / 76 | 12.OO / CO5 | O.75 / 1R | 1COO / 58R | 11OO / 4RR |
| 8 | 56.25 / 142R | 48.OO / 121R | 46.OO / 1168 12.75 / C24 | 25.OO / 6C5 | 1-1/2 | 1O.OO / 254 | 22.25 / 565 | C.25 / 8C | 17.OO / 4C2 | O.75 / 1R | 1685 / 76C | 18OO / 815 |
| 1O | 64.75 / 1645 | 51.75 / 1C14 | 52.OO / 1C21 16.OO / 4O6 | 26.OO / 66O | 1-1/2 | 1O.OO / 254 | 25.25 / 641 | C.5O / 8R | 1R.OO / 48C | O.75 / 1R | 212O / R6O | 2COO / 1O42 |
| 12 | 72.5O / 1842 | 57.75 / 1467 | 54.OO / 1C72 18.OO / 457 | 28.OO / 711 | 1-1/2 | 12.OO / CO5 | 2R.25 / 74C | 4.OO / 1O2 | 21.OO / 5CC | 1.OO / 25 | C27O / 1481 | C5OO / 1586 |
If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.
5. T Strainer Valve Packing with Plywood
Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.
You will get an effective response within 24 hours from TongJiang Team.
